• Circuit：SPST
• Function：Momentary
• Contact Rating：1~50mA@5V~24VDC(resistive Load)
• Contact Resistance：100mΩ max.(initialvalue)
• Insulation Resistance：100MΩ min
• Dielectric Strength：500 RMS @ sea level
• Operating Force：Standard Force:180±30gf
High Force:260±50gf
• Operating Temperature：-25℃ to 70℃

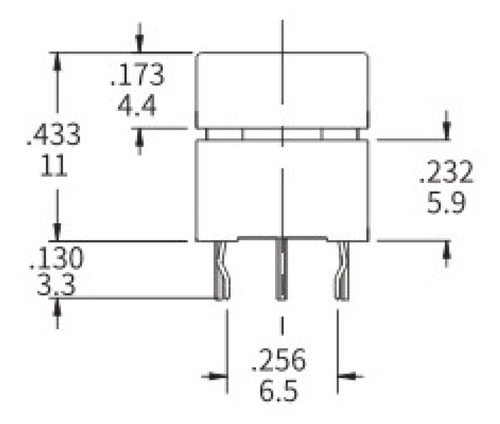

• Total Travel：0.25+0.2/-0.1mm
• Electrical Life：180gf(standard force):500,000 operations min.
260gf(high force):300,000 operations min.
|
 |
   |
| Part Number | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Electrical Life | Total Travel | Operating Temperature | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R2090-011 | 1~50mA@5V~24VDC(resistive Load) | 100mΩ max.(initialvalue) | 100MΩ min | 500 RMS @ sea level | Standard Force:180±30gf High Force:260±50gf | 180gf(standard force):500,000 operations min. 260gf(high force):300,000 operations min. | 0.25+0.2/-0.1mm | -25℃ to 70℃ | 暫無 |
| R2090-002G-A13 | 1~50mA@5V~24VDC(resistive Load) | 100mΩ max.(initialvalue) | 100MΩ min | 500 RMS @ sea level | Standard Force:180±30gf High Force:260±50gf | 180gf(standard force):500,000 operations min. 260gf(high force):300,000 operations min. | 0.25+0.2/-0.1mm | -25℃ to 70℃ | 暫無 |
