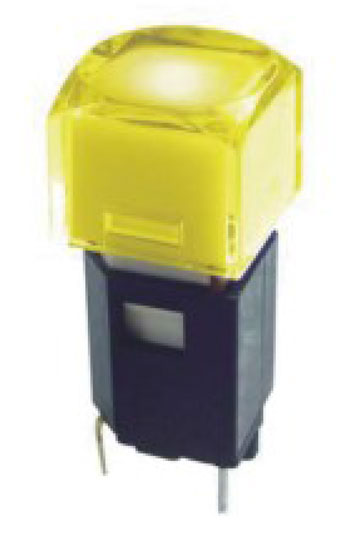

• Pole-Position：Momentary Type,SPST with LED
• Contact Rating：MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC
• Contact Resistance：200Ωmax，5VDC;1mA,by Method of Voltage DROP
• Insulation Resistance：100MΩ min.100VDC for 1 minute
• Dielectric Strength：Breakdown is not Allowable;250 VAC for 1 Minute
• Operating Force：125±35gf
• Operating Temperature Range：-20℃ ~70℃
• Operating Life：300,000 cycles
• Total Travel：1.3±0.3mm
|
 |
   |
| Part Number | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Operating Temperature | Operating Life | Total Travel | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R2900A-C1-NY-□□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
| R2900A-C2A-NW-□□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
| R2900A-C2-NB-□□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
| R2900A-C3-RW-□□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
| R2900A-C4-TW-B□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
| R2900A-C2A-WW-□□-V | MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC | 200Ωmax，5VDC;1mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 125±35gf | -20℃ ~70℃ | 300,000 cycles | 1.3±0.3mm | 暫無 |
