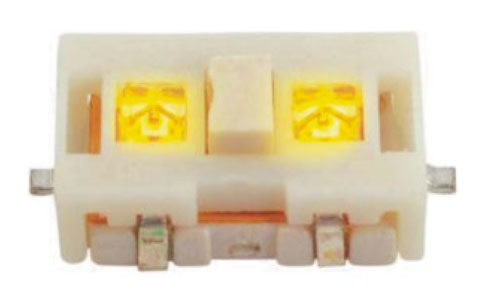

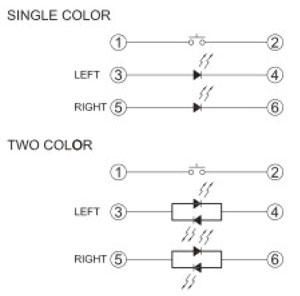

• Pole-Position：Momentary Type,SPST with LED
• Contact Rating：12VDC,50mA MAX,1VDC 10μA MIN
• Contact Resistance：500mΩmax，1.5VDC;100mA,
by Method of Voltage DROP • Insulation Resistance：100MΩ min.100VDC for 1 minute
• Dielectric Strength：Breakdown is not Allowable;
250 VAC for 1 Minute • Operating Force：160+75/-30 gf
• Operating Life：30,000 cycles
• Operating Temperature Range：-20℃ ~70℃
• Total Travel：0.25+0.2/-0.1mm
|
 |
   |
| Part Number | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating Force | Operating Life | Operating Temperature | Total Travel | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R2998-R□□U-T/R | 12VDC,50mA MAX,1VDC 10μA MIN | 500mΩmax，1.5VDC;100mA,by Method of Voltage DROP | 100MΩ min.100VDC for 1 minute | Breakdown is not Allowable;250 VAC for 1 Minute | 160+75/-30 gf | 30,000 cycles | -20℃ ~70℃ | 0.25+0.2/-0.1mm | 暫無 |
