• Rating：2A 36VDC
• Contact Resistance：50mΩ max（initial）
• Insulation Resistance：1,000MΩ min 500VDC
• Dielectric Strength：2,000V RMS 50~60HZ
• Operating force：5.5N max
• Electric Life：20,000 cycles
• Operating Temperation：-20℃ ~+ 70℃

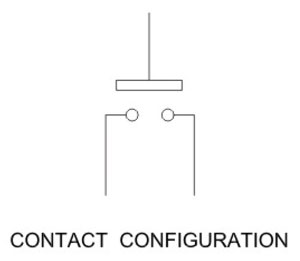

• Switching Circuit：OFF~(ON)
• IP class：IP65 protection
• Torque：5~14NM max.applied to nut
|
 |
   |
| Part Number | Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operating force | Electric Life | Operating Temperation | Total Travel | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R0195-MB-U | 2A 36VDC | 50mΩ max（initial） | 1,000MΩ min 500VDC | 2,000V RMS 50~60HZ | 5.5N max | 20,000 cycles | -20℃ ~+ 70℃ | / | 暫無 |
| R0195-MB-G | 2A 36VDC | 50mΩ max（initial） | 1,000MΩ min 500VDC | 2,000V RMS 50~60HZ | 5.5N max | 20,000 cycles | -20℃ ~+ 70℃ | / | 暫無 |
| R0195-PB-B-R | 100mA 24VDC | 50mΩ max（initial） | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 500,000 cycles | / | 2.5mm | 暫無 |
| R0195-PB-R | 100mA 24VDC | 50mΩ max（initial） | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 500,000 cycles | / | 2.5mm | 暫無 |
| R0195-PSB-B | 100mA 50VDC | 50mΩ max | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 500,000 cycles | / | 1.5mm | 暫無 |
| R0195-PZB-B | 100mA 50VDC | 50mΩ max（initial） | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 500,000 cycles | / | 1.5mm | 暫無 |
| R0195-A-PB-R-R | 100mA 24VDC | 50mΩ max（initial） | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 200,000 cycles | / | 2.5mm | 暫無 |
| R0195-A-PB-Y | 100mA 24VDC | 50mΩ max（initial） | 1GΩ min at 500VDC | 1,000VAC RMS | 2N~5N | 200,000 cycles | / | 2.5mm | 暫無 |
